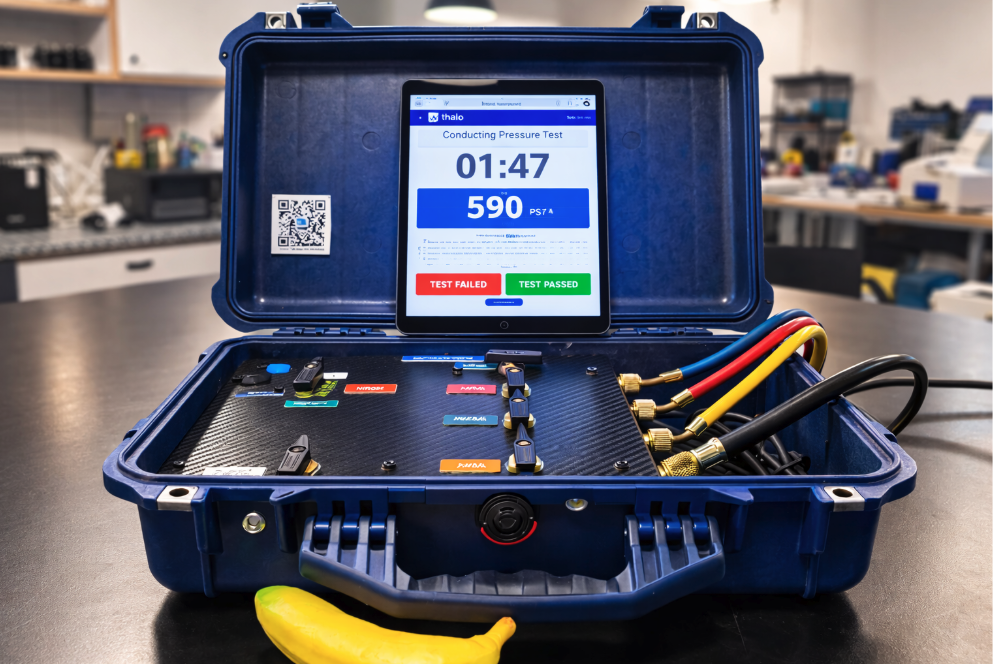

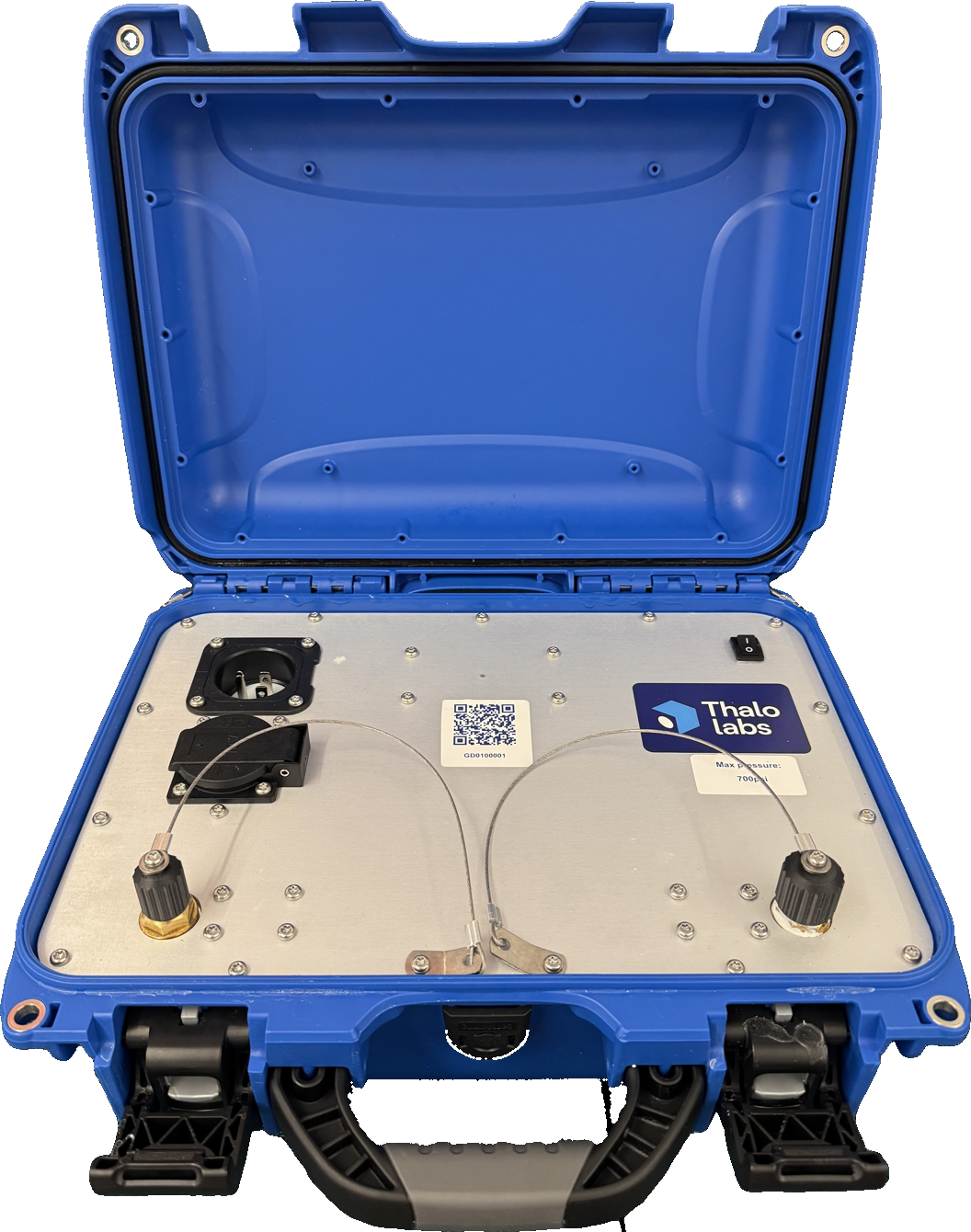

Gordon is a diagnostic and installation tool that turns the HVAC line set verification process from a manual, experience-dependent procedure into a guided, sensor-verified workflow. Every install ends with a certified, timestamped record and a dramatically lower callback rate.
The HVAC industry averages ~77% first-time install success for split systems. Nearly 1 in 4 installs requires a return visit, usually for refrigerant leaks, improper charge, or vacuum failures at the line set connections.
At 100 installs per month, that's 20+ extra truck rolls. Hundreds of thousands in annual losses. Gordon targets a callback rate of ≤5% through enforced process discipline.
Industry install callback rate
Gordon target callback rate
Extra truck rolls/mo at 100 installs
Annual savings at 100 installs/mo
Gordon 1.0 is a diagnostic and installation tool that turns the HVAC line set verification process from a manual, experience-dependent procedure into a guided, sensor-verified workflow. By automating prescribed pressure holds, vacuum verification, and refrigerant charge validation, Gordon reduces installation failures and callbacks.
A step-by-step install workflow that improves consistency, reduces callbacks, and creates a permanent record of installation quality.
Attach Gordon to the HVAC ports and connect to the vacuum pump, nitrogen, and site power. Scan the equipment QR code using the mobile app to initiate the digital setup and guided workflow.
After installation, Gordon performs automated pressure and vacuum testing. Once complete, the app displays the exact calculated charge and monitors the final fill in real-time. Sensor-enforced, not eyeballed.
The system generates a digital certification report and stores the data in the cloud for warranty tracking. Every install ends with a timestamped PDF, the proof of quality for the contractor, owner, and OEM.
Move the sliders to match your operation. Industry defaults are pre-loaded and based on ACCA benchmarks.
Annual rework cost today
Gordon-addressable rework
Estimated annual savings with Gordon
Today, callbacks erode ... of gross profit on every install.
With Gordon, that drops to ....
Estimate excludes warranty claim denials ($5K-$15K each is common), customer churn from comfort complaints, tech turnover from rework burnout, and lost referrals. All of these compound the visible cost.
Want a tighter estimate for your specific operation? Book a 30-min walkthrough. We'll plug in your real numbers and walk through the math.
| Pressure Range | 0-1,000 PSI (N₂ and refrigerant compatible) |
| Vacuum Measurement | Dedicated micron gauge (Pirani/MEMS); A2L-ready for R-32 systems (≤50 μm rise validation) |
| Temperature Comp. | Onboard ambient sensor; auto-corrects pressure drift |
| Connectivity | 4G LTE cellular + GPS. No Wi-Fi or Bluetooth dependency |
| Reports | Cloud dashboard; auto-generated PDF certification reports |
| Fittings | Standard 1/4" and 3/8" flare; all major OEM compatible |
| Power | 120V-240V AC; rated for continuous 24-48 hr unattended operation |
| Enclosure | Ruggedized field enclosure; operational −10°F to 120°F |
